The KYN28 switchgear intelligent assembly line represents a significant advancement in electrical equipment manufacturing, combining precision engineering with automated material handling systems. As a specialized production solution designed for medium-voltage switchgear assembly, this line integrates multiple workstations with intelligent conveyor technology to optimize production efficiency while maintaining the highest quality standards required by the electrical power industry.

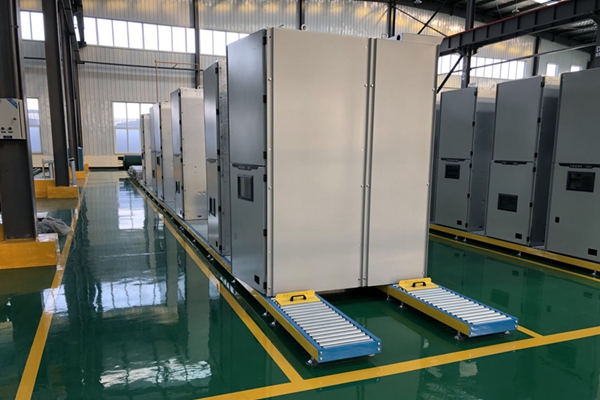

The assembly line features a robust roller conveyor system that serves as the backbone of the production process. Each switchgear cabinet is positioned on individual roller platforms, allowing smooth and controlled movement between assembly stations. The conveyor system is engineered with heavy-duty rollers mounted on reinforced steel frames, capable of supporting substantial cabinet weights while ensuring minimal friction during transit.
The blue and yellow color-coded platforms not only enhance visual organization but also indicate designated positions for quality control checkpoints and assembly stage transitions. This color-coding strategy supports quick identification of station status and workflow progression across the production floor.
The line layout follows a linear progression model, where cabinets move sequentially from one assembly station to the next. This arrangement facilitates a systematic workflow where each station focuses on specific assembly operations, ranging from structural frame assembly to component installation, wiring, and final testing. The spacious aisle design, marked with yellow safety lines on the green epoxy floor, ensures safe personnel movement and material access throughout the production area.
The manufacturing process begins with cabinet frame assembly, where structural components are mounted onto the conveyor platform. As the cabinet advances along the line, technicians install internal components including busbar systems, circuit breaker mechanisms, and control modules. The roller conveyor system allows for 360-degree access to the cabinet, enabling assembly operations from multiple angles without repositioning the main unit.
Critical assembly stages include the installation of vacuum circuit breakers, earthing switches, and current transformers. Each component must be precisely aligned and securely fastened according to engineering specifications. The assembly line design accommodates these requirements by providing stable positioning and adjustable work heights at each station. Technicians can rotate the cabinet or adjust its orientation using the roller platform’s mobility features, ensuring ergonomic working conditions and precise component placement.
The wiring and interconnection phase represents one of the most intricate stages of the assembly process. Technicians route control cables and power conductors through designated cable channels, connecting secondary circuits to terminal blocks and control relays. The assembly line’s open design provides unrestricted access to both the front and rear of the cabinet, facilitating complex wiring operations that demand meticulous attention to detail and adherence to electrical safety standards.
Quality assurance is embedded throughout the assembly process through strategically positioned inspection stations. At designated intervals along the conveyor line, cabinets undergo dimensional verification, torque testing of fasteners, and electrical continuity checks. The roller conveyor system enables quick repositioning of cabinets for inspection purposes, allowing quality engineers to access all sides of the assembly without manual lifting or repositioning.
The intelligent aspects of the assembly line include integrated testing equipment that communicates with the conveyor control system. When a cabinet reaches a testing station, the conveyor automatically positions it at the optimal location for test probe connections and measurement procedures. This integration reduces setup time between assembly and testing phases, contributing to overall production efficiency and minimizing the risk of human error during critical testing operations.
High-voltage withstand testing and insulation resistance measurement are performed at dedicated testing stations equipped with specialized instrumentation. The conveyor system ensures precise positioning of the cabinet for safe and accurate test connections, while protective barriers and interlock systems safeguard personnel during high-voltage test procedures.
The assembly line incorporates efficient material delivery systems that synchronize with the conveyor movement. Component kits are prepared at designated supply points along the line, ensuring that technicians have immediate access to required parts without leaving their workstations. The roller conveyor’s smooth operation allows for consistent cycle times, enabling predictable material consumption rates and optimized inventory management.
Empty platforms return to the line’s starting position through a parallel return conveyor or manual transfer system, creating a continuous loop of production capacity. This closed-loop material flow minimizes downtime between production cycles and maximizes the utilization of conveyor assets. The logistics system tracks component consumption in real time, triggering automatic replenishment orders when inventory levels reach predetermined thresholds.
Safety considerations are paramount in the assembly line design. The yellow safety markings on the floor delineate pedestrian walkways from equipment zones, reducing the risk of accidents in the production area. The roller conveyor system eliminates the need for manual transportation of heavy cabinets, significantly reducing worker fatigue and the potential for musculoskeletal injuries.
Ergonomic principles guide the workstation design, with adjustable platform heights and accessible component mounting positions. The ability to rotate cabinets on the roller platform allows technicians to maintain comfortable working postures throughout the assembly process, reducing strain during extended operations. Anti-fatigue matting at standing workstations further enhances operator comfort during detailed assembly tasks.
The modular design of the KYN28 assembly line enables production scalability to meet varying demand levels. Additional stations can be integrated into the conveyor system without disrupting existing operations, allowing manufacturers to expand capacity as market requirements evolve. The standardized roller platform dimensions accommodate various cabinet sizes within the KYN28 product family, providing flexibility in production scheduling and enabling mixed-model production strategies.
Production tracking systems monitor cabinet progression along the line, capturing cycle times and identifying potential bottlenecks. This data-driven approach enables continuous improvement initiatives that enhance throughput and reduce manufacturing lead times. Real-time production dashboards provide visibility into line performance, enabling supervisors to make informed decisions regarding resource allocation and production scheduling.
| Attribute | Specification | Operational Impact |
|---|---|---|
| Conveyor type | Heavy-duty roller system | Smooth cabinet transit, minimal friction |
| Platform design | Color-coded blue and yellow | Visual QC checkpoint identification |
| Floor layout | Linear progression with safety markings | Safe personnel movement, clear workflow |
| Cabinet access | 360-degree rotation capability | Multi-angle assembly without repositioning |
| Testing integration | Automated positioning at test stations | Reduced setup time, minimized human error |
| Material supply | Synchronized kit delivery at workstations | Consistent cycle times, optimized inventory |
| Return system | Parallel conveyor or manual transfer | Continuous production loop, minimized downtime |
| Scalability | Modular station integration | Capacity expansion without disruption |
| Performance tracking | Real-time cycle time monitoring | Bottleneck identification, continuous improvement |
The KYN28 switchgear intelligent assembly line exemplifies modern manufacturing excellence through its integration of mechanical precision, automated material handling, and systematic quality control. The roller conveyor system serves as the operational foundation, enabling efficient workflow management while supporting the complex assembly requirements of medium-voltage switchgear production.
As electrical infrastructure demands continue to grow globally, such advanced assembly solutions position manufacturers to deliver reliable, high-quality switchgear products that meet stringent industry standards and customer expectations. This assembly line represents not merely a production facility, but a comprehensive manufacturing ecosystem where engineering expertise, operational efficiency, and quality assurance converge to produce electrical equipment that powers industrial and commercial applications worldwide.
